| Cab Control | Forward Tilt Cab |
| Seating | Driver + 1 Passenger |

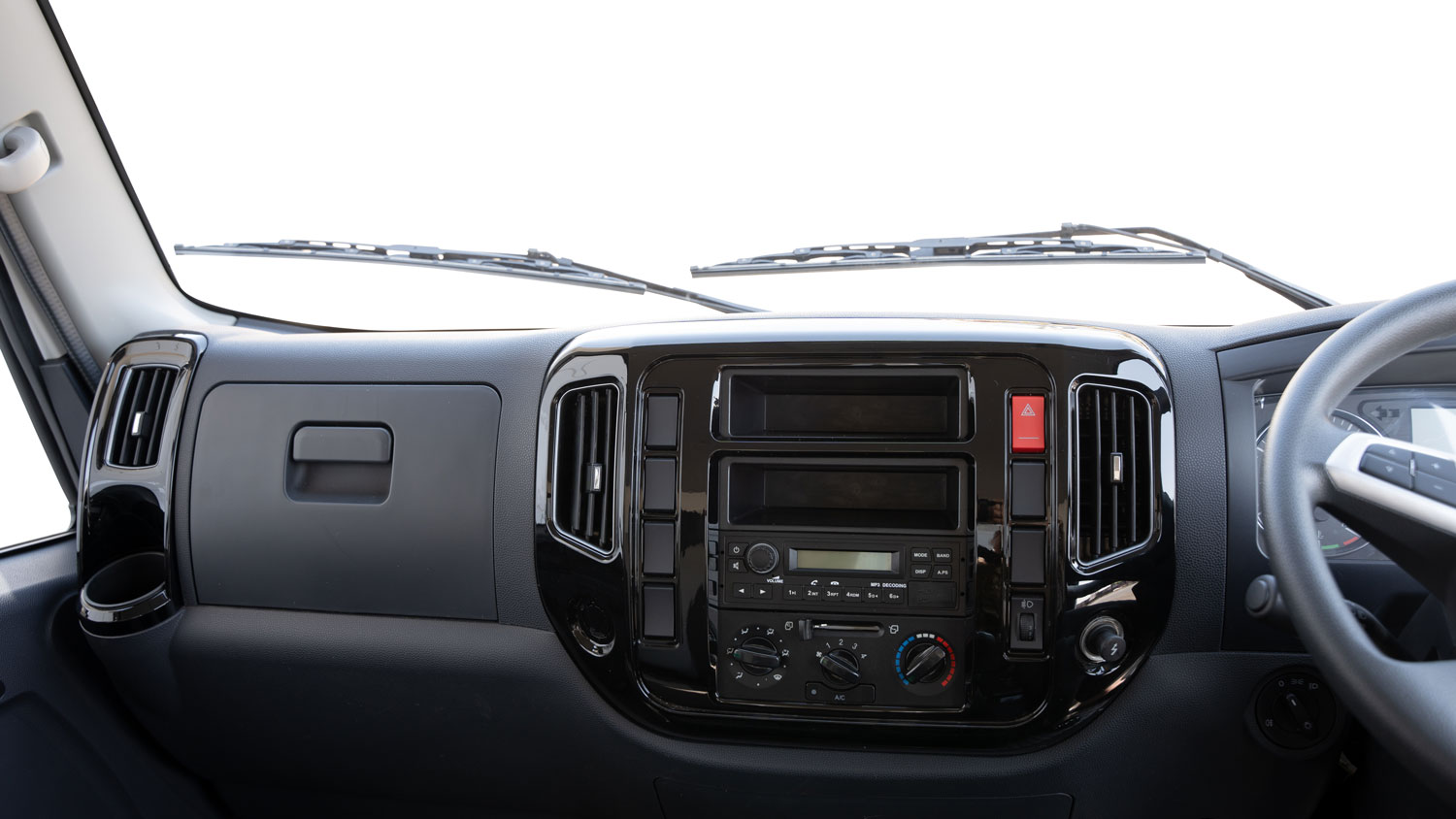

| Type/Extras | Day Cab, Aircon, Radio with USB |
| Make & Model | FAW CA4DB1-11E3 |
| Capacity | 2 200 cm 3 |
| Layout & Type | 4 in line, water cooled, 4 stroke, intercooled & direct injection |
| Emissions Standard | Euro III |
| Power @ r/min (kW) | 81 @ 3 200rpm |
| Torque @ r/min (Nm) | 280 @ 1 600 – 2 400rpm |
| Make & Model | WLY MG85B |
| Type | 5 Speed Manual Syncromesh |
| Forward Ratios | 4.769, 2.607, 1.489, 1.000, 0.721 |
| Reverse Ratio | 4.412 |
| Diameter | 275 mm |
| Type | Dry Single Plate |
| Operation | Hydraulic-Air Assisted |
| Gear Ratio | 16.39:1 |
| Type | Recirculating Ball |
| Operation | Power Assisted |
| Gradeability @ V | Max 35% |
| Permissible Road Speed | 100km/h |
| Front Axle | – Beam section (Forged Steel) |
| Rear Axle – Gearing Type | Full Floating Single Reduction |
| Rear Axle Ratio | 4.875:1 |
| System Type | Full Air – Dual Circuit with ABS |
| Park/Emergency System | Spring Brakes/Rear Booster |
| Number | One |
| Total Capacity | 80 Litre |
| System Voltage & Type | 24V Negative Earth |
| No. of Batteries | Two X 12V |
| Type | Straight Ladder Type – Riveted |
| Front Suspension | Parobolic leaf springs with double acting shock absorbers |
| Rear Suspension | Parobolic leaf springs |
| Tyre Size | 7.00R16-14PR |
| Rim Size | 5.50 X 16 |
| Type | Tube Radial |
| Manufacturer’s Gross Vehicle Mass (GVM) | 4 500 |
| Manufacturer’s Gross Combination Mass (GCM) | 7 050 |
| Manufacturer’s Front Axle Mass (GA Front) | 1 700 |
| Manufacturer’s Rear Axle Mass (GAU Rear) | 2 800 |
| Permissible Gross Vehicle Mass (V) | 4 500 |
| Permissible Gross Combination Mass (D/T) | 7 050 |
| Permissible Front Axle Mass (A Front) | 1 700 |
| Permissible Rear Axle Mass (A Rear) | 2 800 |
| Unladen Front Axle Mass (T Front) | 1 340 |
| Unladen Rear Axle Mass (T Rear) | 620 |
| Unladen Mass Total (Tare) | 2 000 |
| Body and Payload Allowance | 2 500 |
| Wheelbase (WB) | 2 500 |
| Overall Length (OL) | 4 905 |
| Cab Length (A) | 1 600 |
| Overall Width (OW) | 1 907 |
| Overall Height (OH) | 2 200 |
| Front Overhang (D) | 1 155 |
| Rear Overhang (ROH) | 1 250 |
| Cab to Rear Axle (CA) | 1 950 |
| Recommended Body Length | 3 250 |
| Minimum Cab Clearance | 175 |
| Cab to End of Chassis (F) | 3 310 |
| Minimum Turning Radius | 5.75 |
| Minimum Turning Diameter | 12 |
| Ground Clearance | 215 |
| Track – Front | 1 677 |
| Track – Rear | 1 475 |
| Chassis Outer Width | 760 |
| Chassis Inner Width | 752 |
